Automatic Climate Control image

Automatic Climate Control

Retrofit auto climate controls with factory sensors and custom wiring.

—

Overview

Annoyingly, the Sport and Club trims did not get full climate control. The manual controls are ok but for how cheap it is to retrofit, it was a ripoff for Mazda to not include it on all trims.


How cheap is it to retrofit? Well with a second-hand climate control unit, a sunload sensor, and some wiring/soldering skills, at the time of writing it can be done for under $200 AUD.

Parts

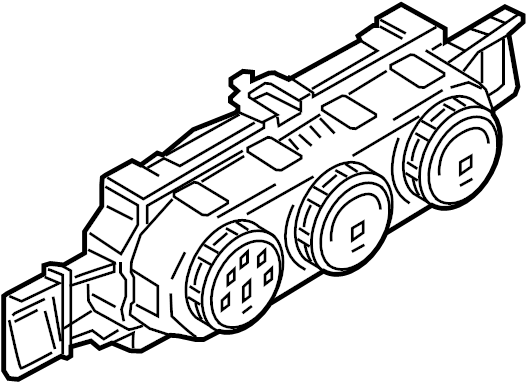

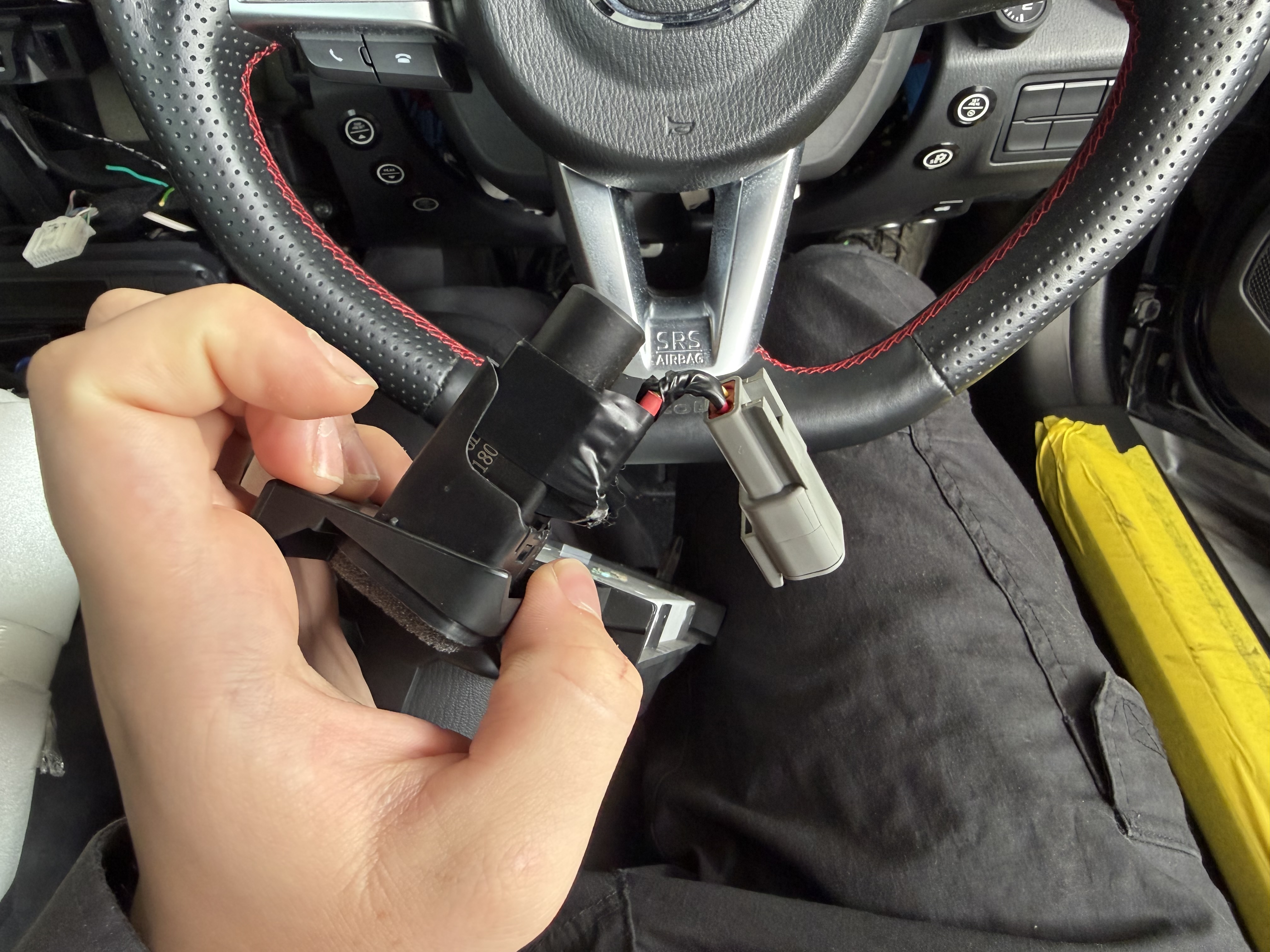

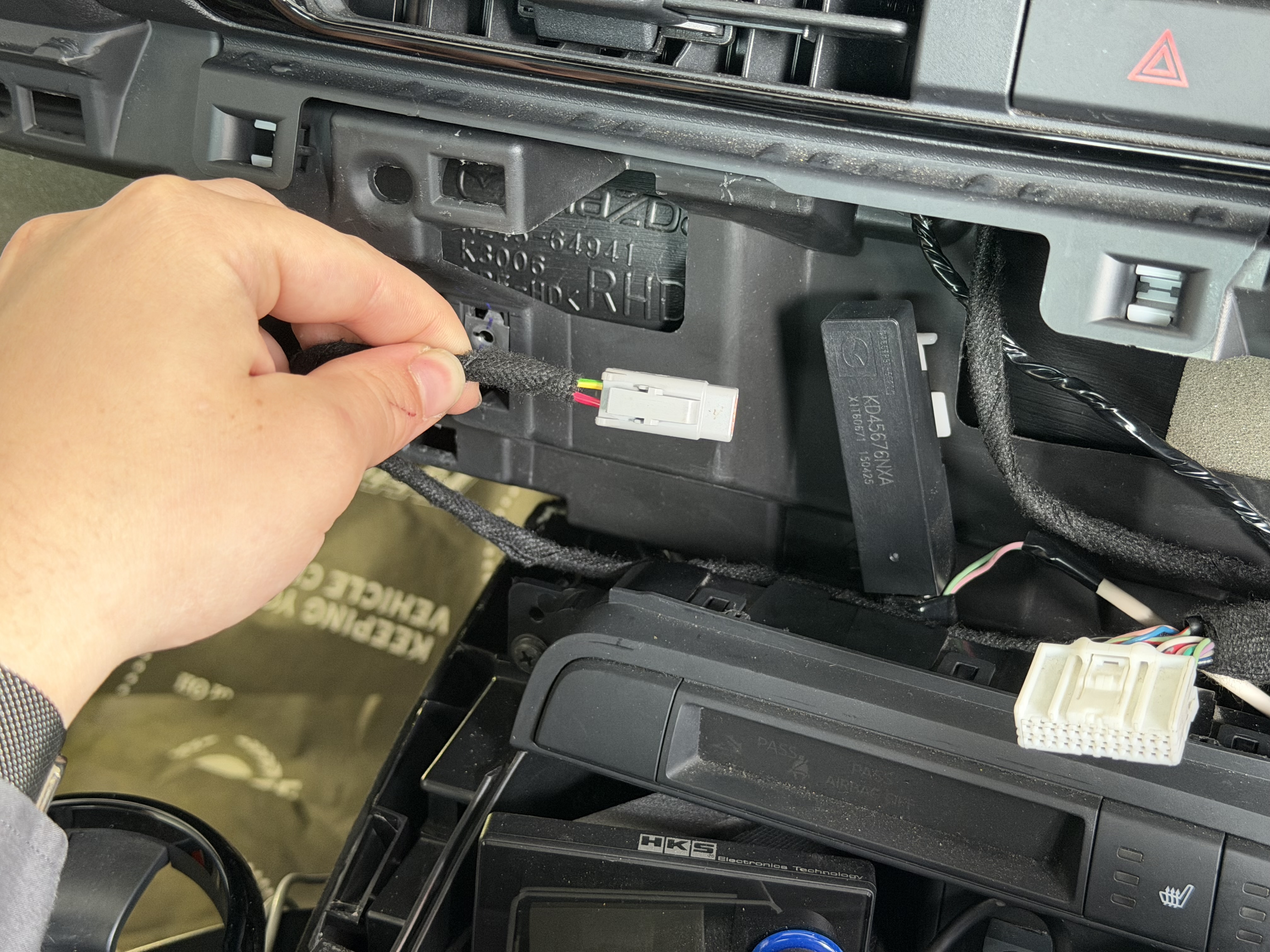

  • A/C Heater Climate Controls: NA9C-61-190F *Must have the Passenger Compartment Temperature Sensor included as it cannot be purchased separately* A/C Heater Climate Controls

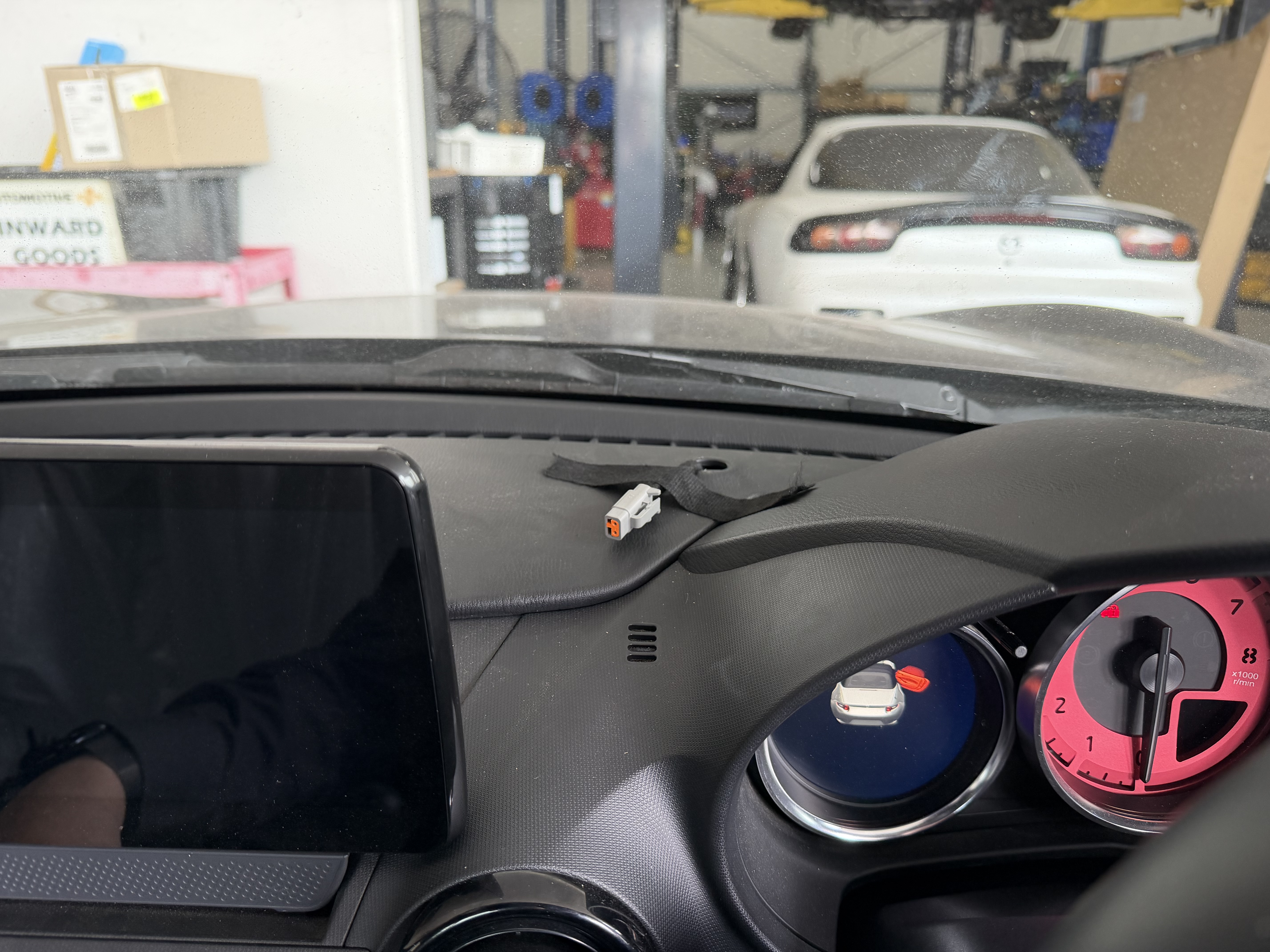

  • Sun Load Sensor: GJ6E-61-751B Sun Load Sensor
  • Wire

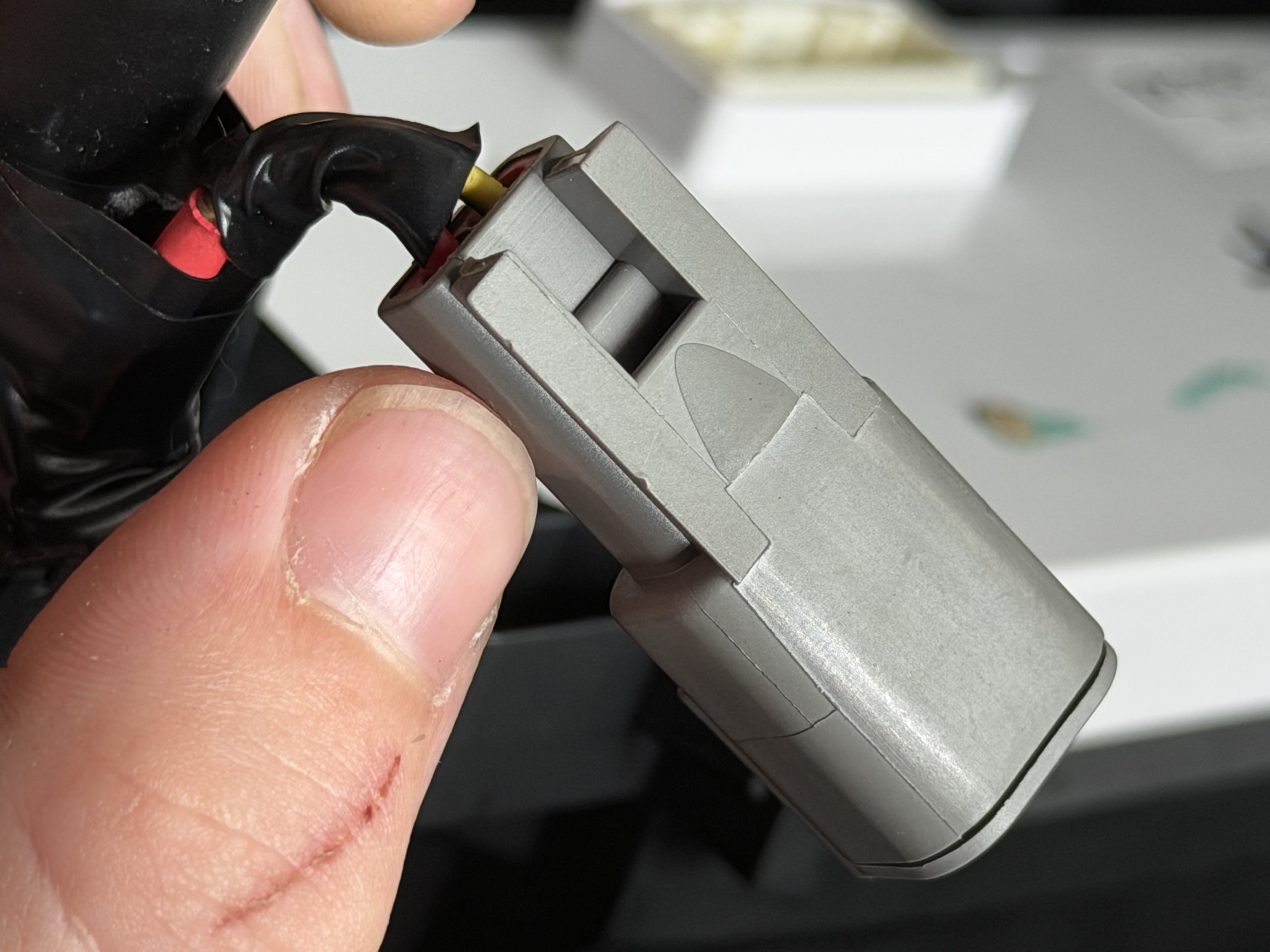

  • Choice of Connector (I used 7.5A Deutsch)
  • Special PINS to add onto harness
